3003 DRAWN ALUMINUM TUBING
3003 DRAWN ALUMINUM TUBING

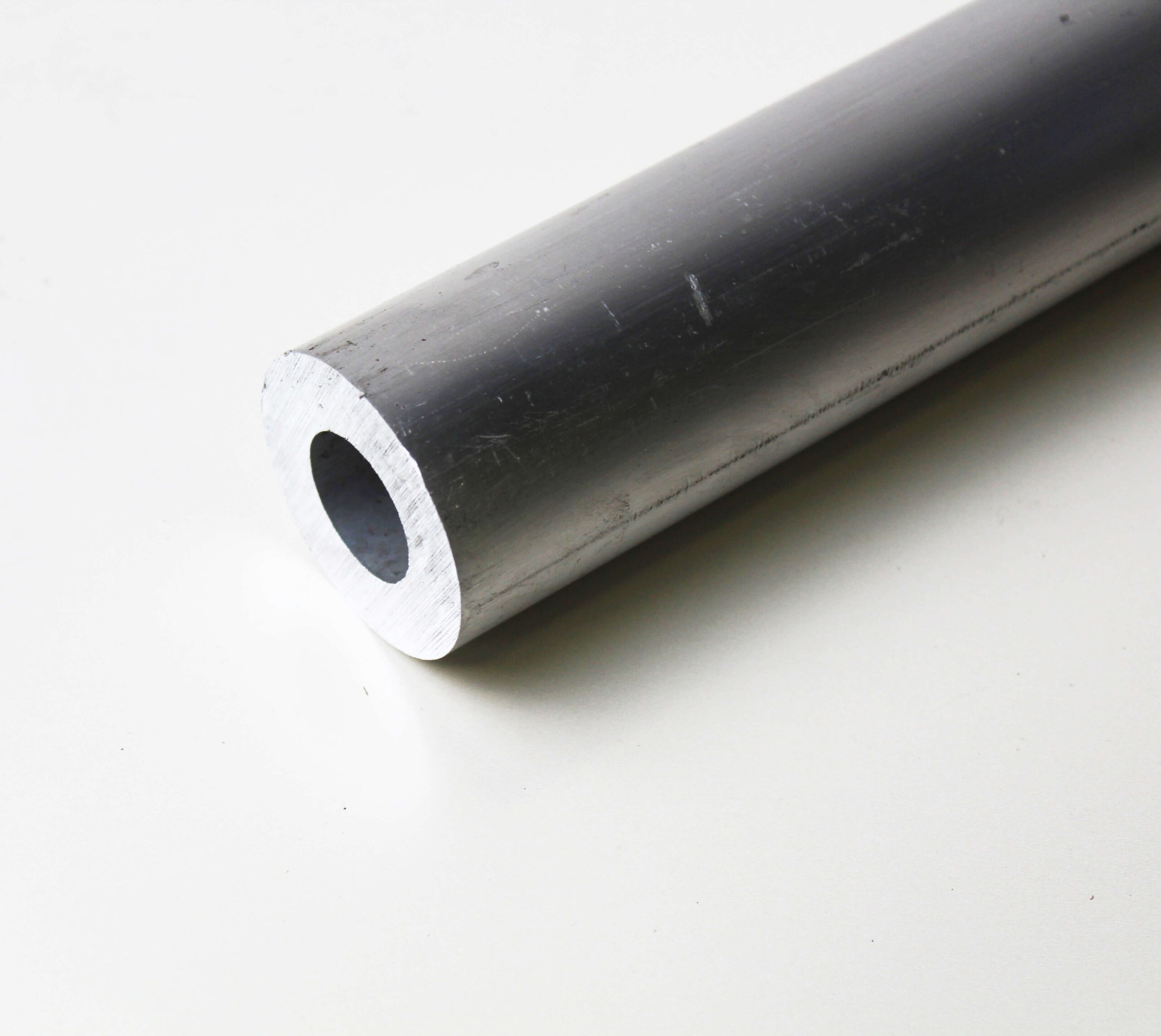

3003 drawn aluminum tubing is a manganese alloyed aluminum product that is primarily used for heat exchangers and condensers in chemical equipment and pressure vessels. This alloy has good corrosion resistance, workability and weld ability characteristics.
STOCK SIZE RANGE:
OD: 3/16″ through 4″
Walls: .022 through .083
Tempers: O, H14
Specifications: ASTM B210, AMS 4065, AMS 4067, AMS-WWT-700/2
Typical Chemical Composition %
| Weight % | Si | Fe | Cu | Mn | Zn | Each | Total |
|---|---|---|---|---|---|---|---|
| Minimum | .05 | 1.0 | |||||
| Maximum | .60 | .70 | .20 | 1.5 | .10 | .05 | .15 |
Remainder Aluminum
Typical Mechanical Properties
| Temper | Tensile | Hardness | ||||
|---|---|---|---|---|---|---|
| Ultimate | Yield | Elongation | Brinell | |||
| KSI | MPA | KSI | MPA | % | ||
| O | 16 | 110 | 6 | 40 | 30 | 28 |
| H14 | 22 | 152 | 21 | 145 | 16 | 40 |
